Machined from brass, steel or aluminium and featuring all USA imperial threads, these blocks will bolt right on to a 1957 tremolo. Right handed tremolo use only. Comes complete with the 3 screws to attach to the tremolo baseplate. We even drop in a tremolo arm tension spring to allow for perfect trem arm positioning every time.

This block will fit a USA-made Custom Shop Vintage, Time Machine Reissues, 50's, 60's and 70's Classic Series Made In Mexico, Highway 1 up to & including year 2005, Road Worn Made In Mexico, Eric Johnson Signature Model, Jimmie Vaughan Tex Mex Strat model, and Jimi Hendrix, Yngwie Malmsteen, Richie Blackmore and Eric Clapton signature models.

PLEASE NOTE THIS WILL NOT FIT A FENDER AMERICAN STANDARD SERIES TREMOLO BRIDGE.

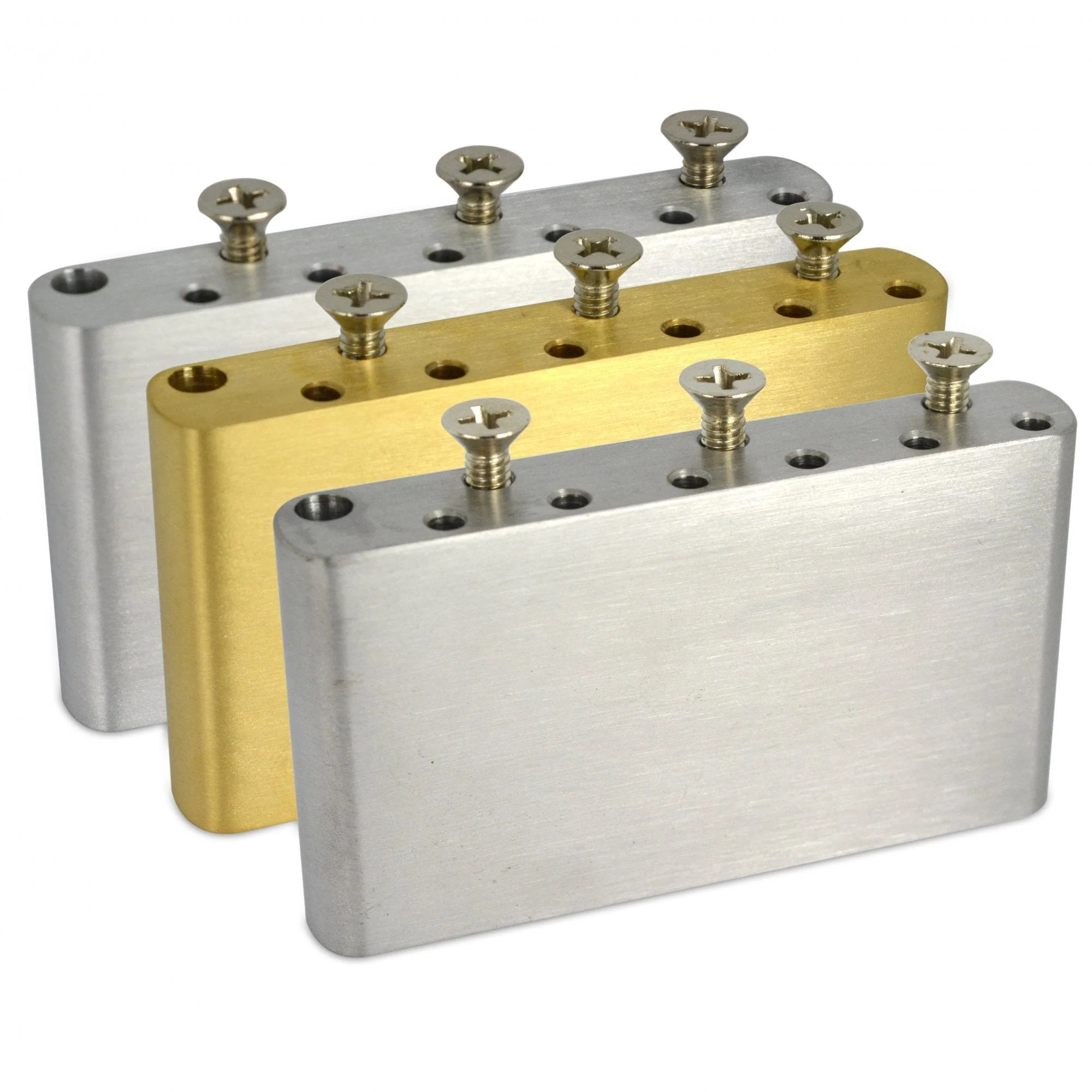

Choose between three material options:

Brass: Adds string definition along with a fat bottom-end and rich tone, characteristically inherent to brass. Weight: 304 grams.
Steel: The original material used on vintage Stratocaster guitars. Weight: 284 grams.
Aluminium: Provides string definition and clarity, plus saving weight. Weight: 100 grams.

Need a tremolo arm to fit this block? See the Gotoh B1 tremolo arm here.

Important Measurements:
Centre to centre of the two outer string holes (E to E string): 56.5mm (11.2mm between adjacent string holes)
Block mounting holes: 22.5mm centre to centre of adjacent holes, 45mm centre to centre of the two outer holes.
Outer dimmensions: 75mm x 13mm x 42.5mm US (imperial) threads. Will accept a 10/32 threaded tremolo arm.

Sustain Block

Price

Collections

Tremolo Block for Original Floyd Rose only

Tremolo Block For Floyd Rose Pro Unit

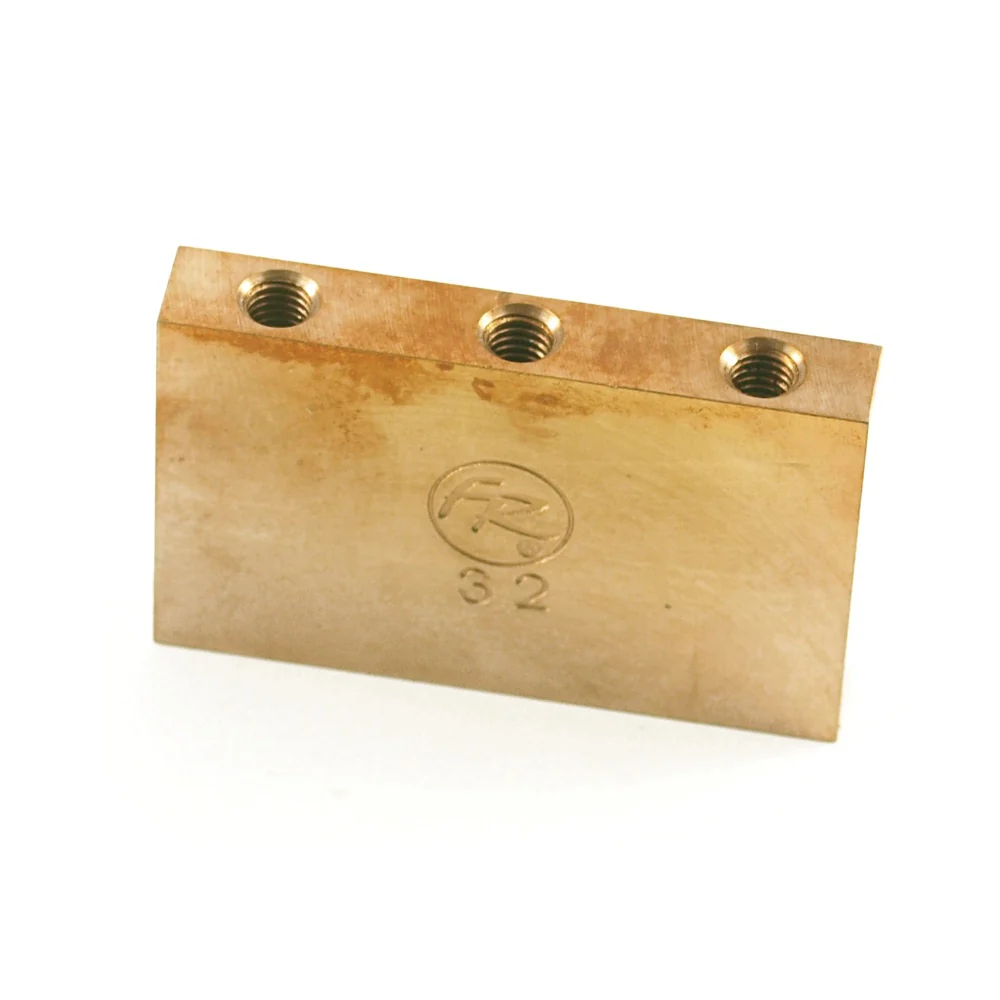

Tungsten Sustain Block (For Original Floyd)

Fat Brass L Shaped Sustain Block

Vintage Replacement Strat Sustain Block - Steel, Brass and Aluminium

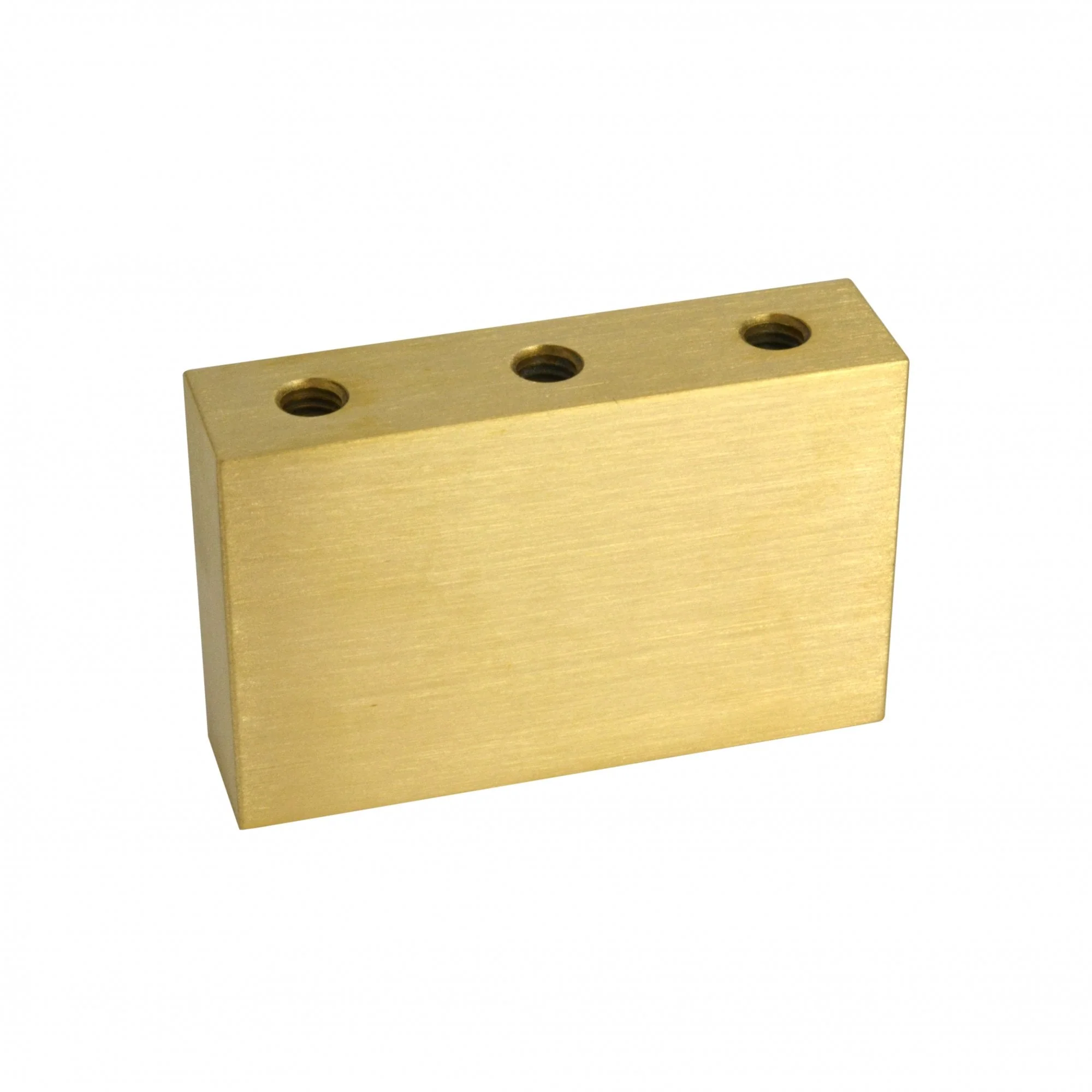

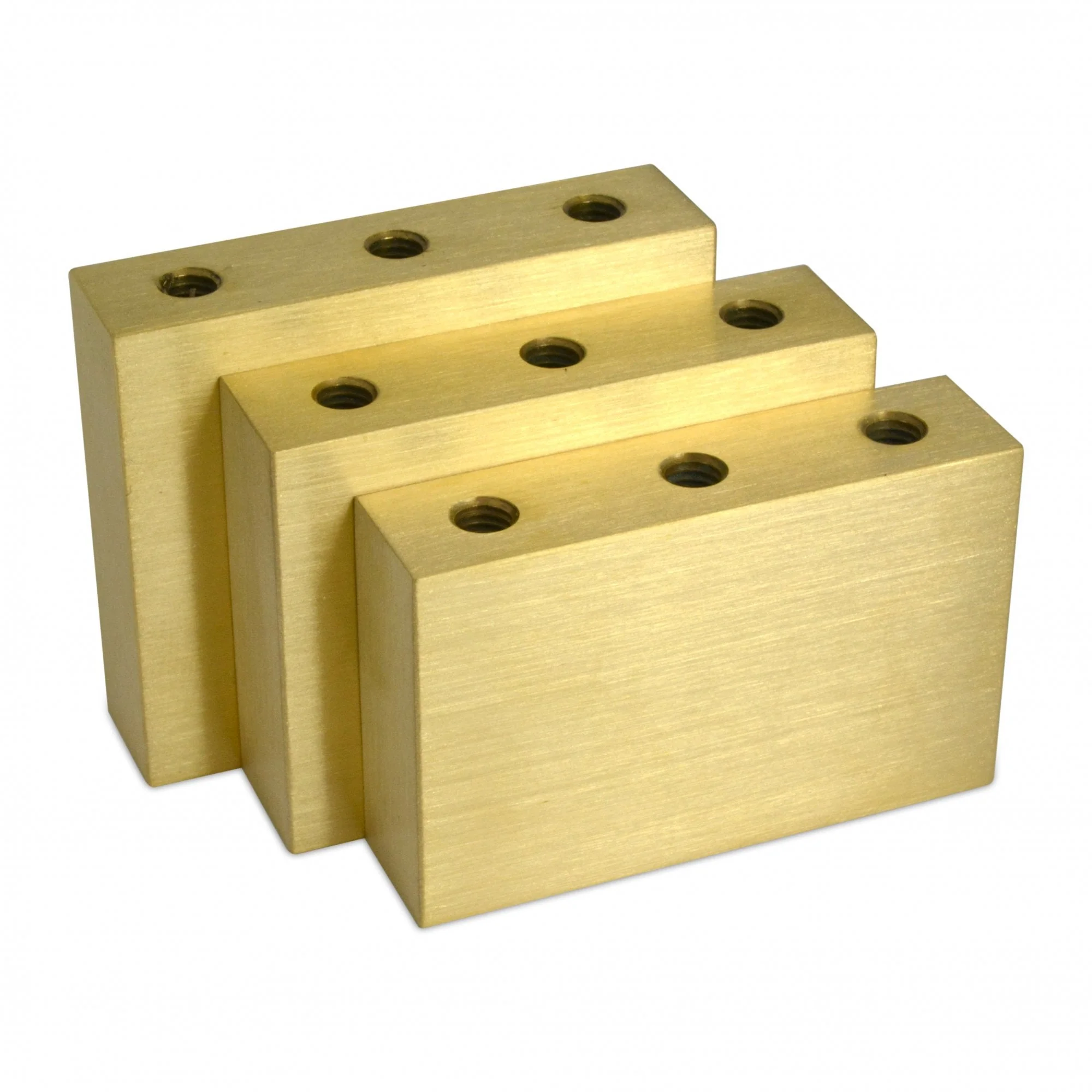

Replacement Brass Fat Tremolo Block For Original Floyd
