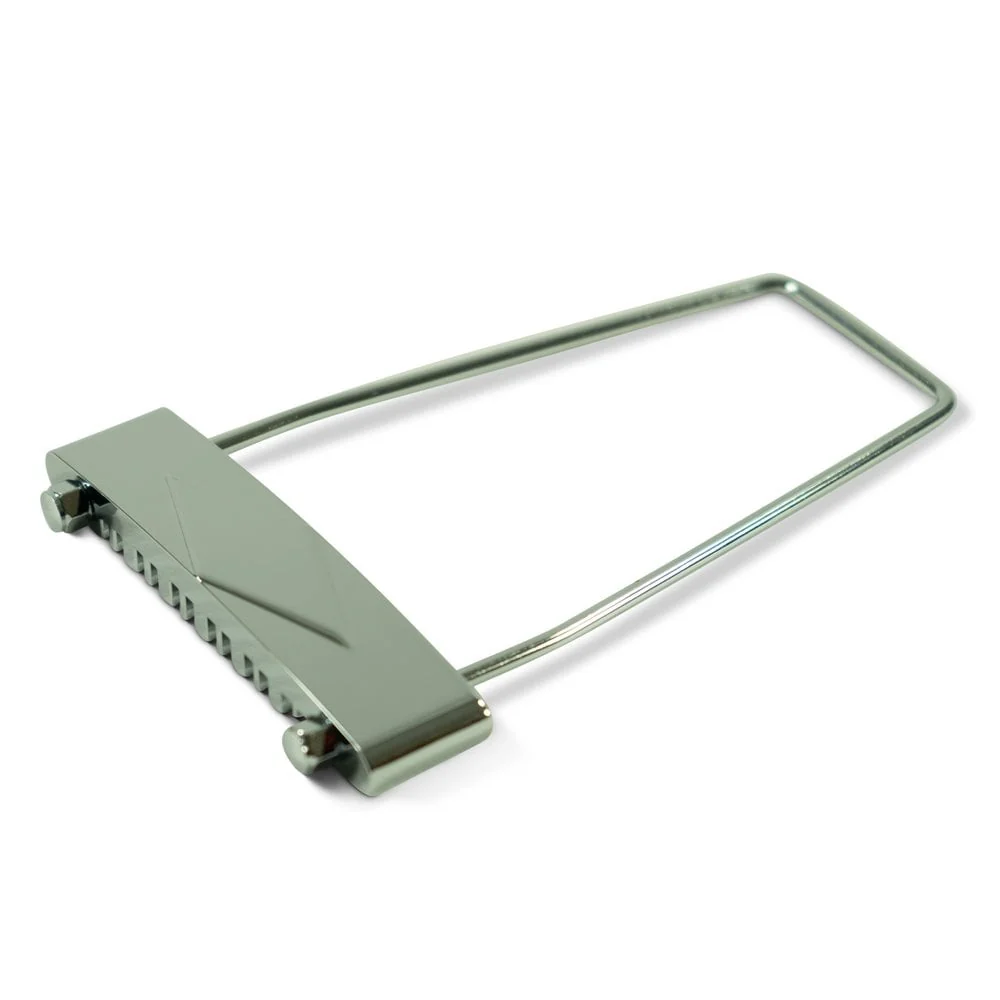

12 String Trapeze Tailpiece
This tailpiece was traditionally used on 12 string thinline archtop instruments such as the 12 string Gibson ES-335 made between 1965 and 1970. Please make sure to check the specs to see if they match your instrument to verify that it is the correct replacement.
IMPORTANT SPECS AND DIMENSIONS:
Tailpiece Length (without hinge): 119.7mm (4.71in)
Length of Bar: 83.9mm (3.30in)
Width of Bar: 19mm (0.75in)
String Spacing at Bar: 9.33mm (0.13in)

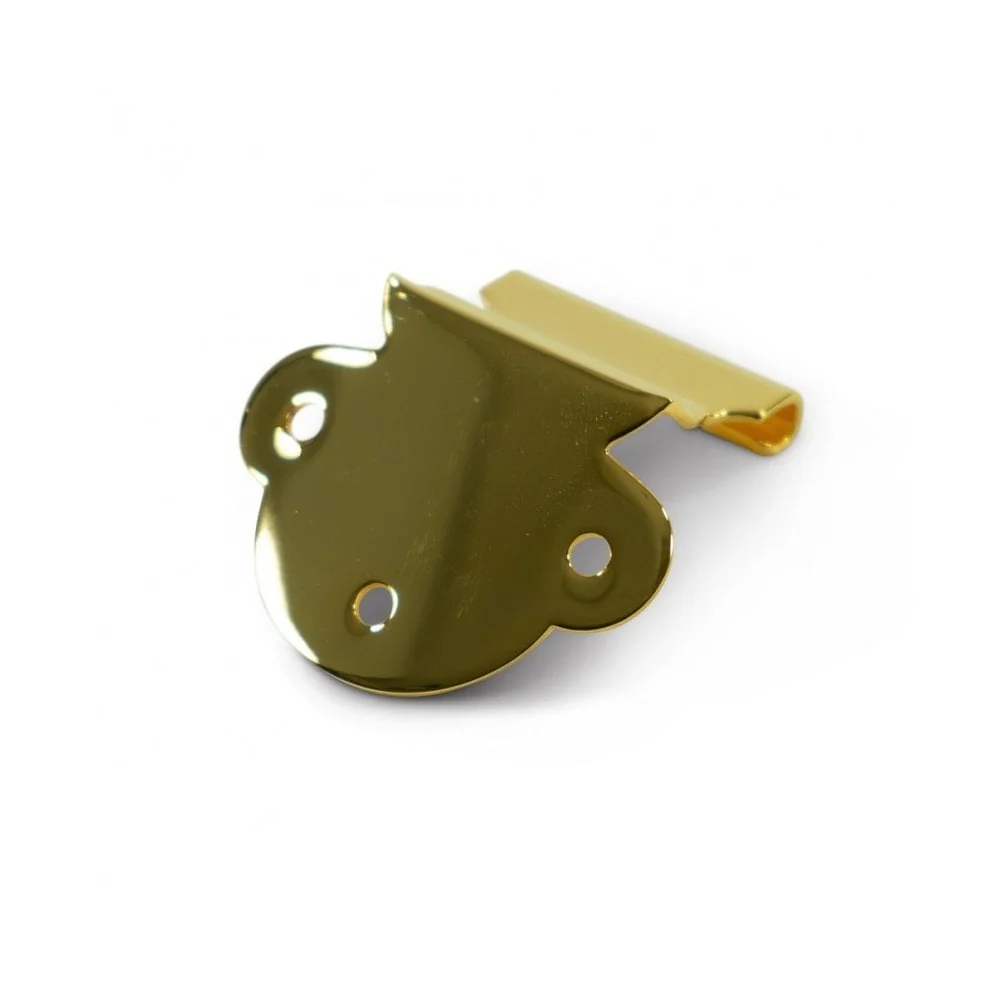

Mounting Area of Hinge Length: 39mm (1.54in)
Mounting Area of Hinge Width: 50.5mm (1.99in)
Mounting hole location bottom center: 6.2mm (0.24in) from bottom edge
Two Mounting hole locations from side edges: 5.8mm (0.23in) from side edge
Two Mounting hole locations Apart from each other: 30.8mm (1.21in)
Upper side of Hinge Length: 30.7mm (1.21in)
Upper side of Hinge Width: 35.6mm (1.40in)
Original: $52.36
-65%$52.36
$18.33More Images
12 String Trapeze Tailpiece
This tailpiece was traditionally used on 12 string thinline archtop instruments such as the 12 string Gibson ES-335 made between 1965 and 1970. Please make sure to check the specs to see if they match your instrument to verify that it is the correct replacement.
IMPORTANT SPECS AND DIMENSIONS:
Tailpiece Length (without hinge): 119.7mm (4.71in)
Length of Bar: 83.9mm (3.30in)
Width of Bar: 19mm (0.75in)
String Spacing at Bar: 9.33mm (0.13in)
Mounting Area of Hinge Length: 39mm (1.54in)
Mounting Area of Hinge Width: 50.5mm (1.99in)
Mounting hole location bottom center: 6.2mm (0.24in) from bottom edge
Two Mounting hole locations from side edges: 5.8mm (0.23in) from side edge
Two Mounting hole locations Apart from each other: 30.8mm (1.21in)
Upper side of Hinge Length: 30.7mm (1.21in)
Upper side of Hinge Width: 35.6mm (1.40in)
