Deluxe Archtop Tailpiece

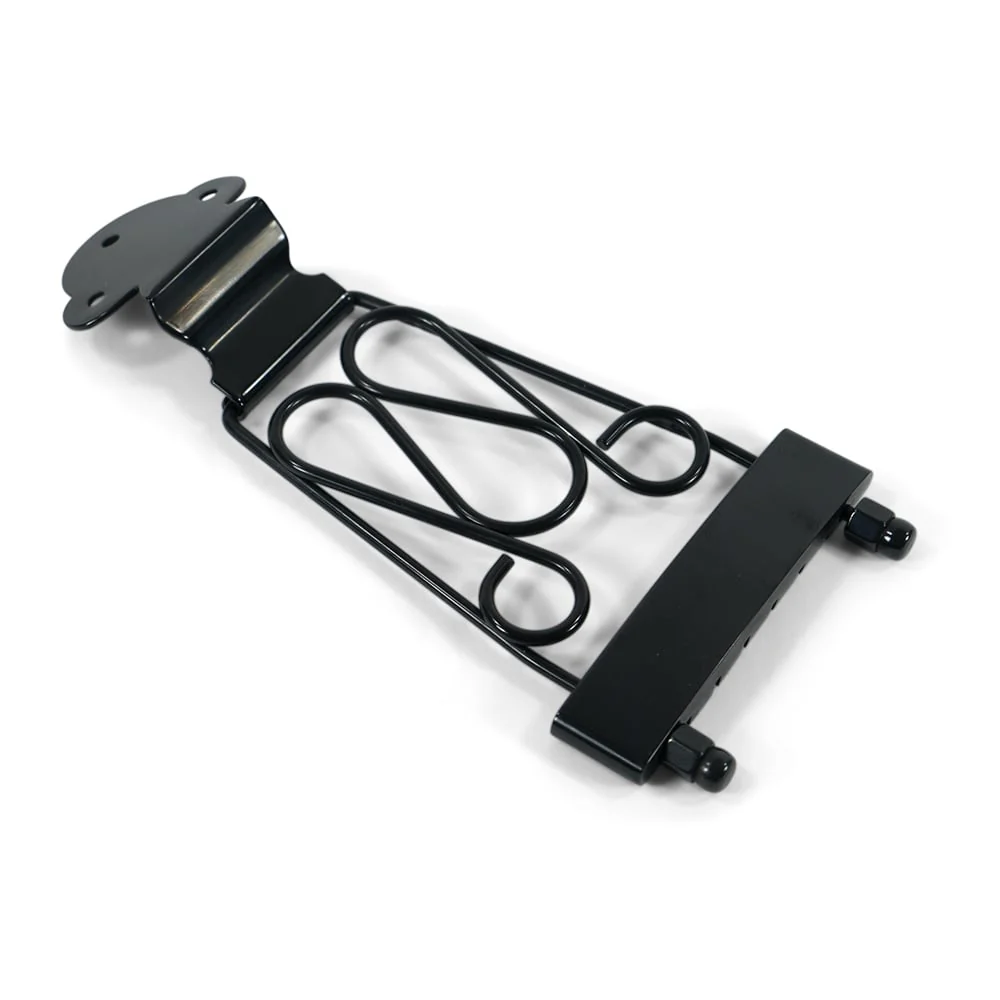

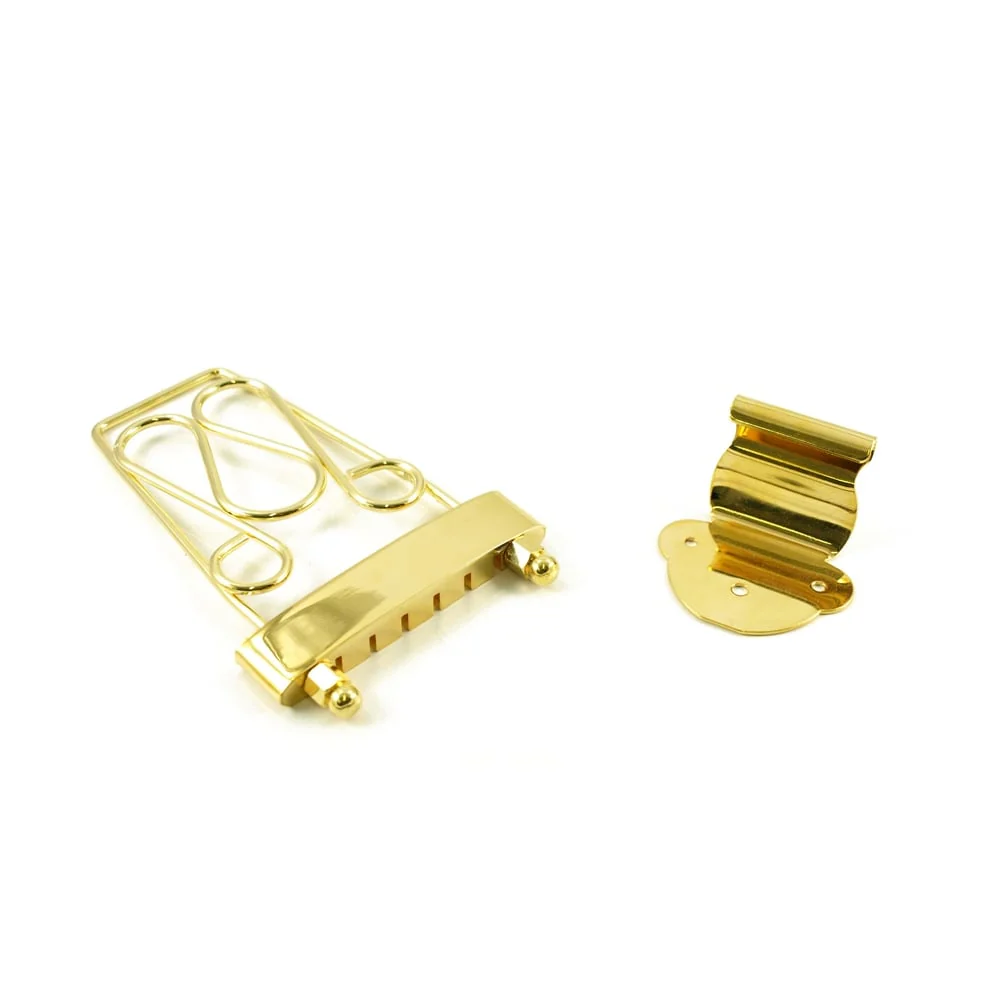

This tailpiece for archtop guitars is a classic design with decorative metalwork supporting the shape of the bracket that links to the tailpiece hinge. High quality plating available in chrome, nickel, black or gold.
Important Mounting Bracket Dimensions:
Mounting hole locations on bracket are as follows:
from top curve in bracket mount to the first two screw holes = 9/16 inches on centre
width between first two mounting screw holes = 1 11/32 inches o.c.
from top to single bottom screw hole/strap peg = 1 inch o.c.
Length of Bracket from curve to hinge location = 1 3/16 inches
Important Tailpiece Dimensions:
Length from wire hinge location to string mount = 4 1/2 inches
String spacing E to E on tailpiece = 1 31/32 inches
Width of metal string mount bracket = 11/16 inches
Original: $49.67
-65%$49.67
$17.38More Images
Deluxe Archtop Tailpiece
This tailpiece for archtop guitars is a classic design with decorative metalwork supporting the shape of the bracket that links to the tailpiece hinge. High quality plating available in chrome, nickel, black or gold.
Important Mounting Bracket Dimensions:
Mounting hole locations on bracket are as follows:
from top curve in bracket mount to the first two screw holes = 9/16 inches on centre
width between first two mounting screw holes = 1 11/32 inches o.c.
from top to single bottom screw hole/strap peg = 1 inch o.c.
Length of Bracket from curve to hinge location = 1 3/16 inches
Important Tailpiece Dimensions:
Length from wire hinge location to string mount = 4 1/2 inches
String spacing E to E on tailpiece = 1 31/32 inches
Width of metal string mount bracket = 11/16 inches
