Firebird Bass / Banjo 2 + 2 Set Of Tuners with Plastic Keystone Buttons

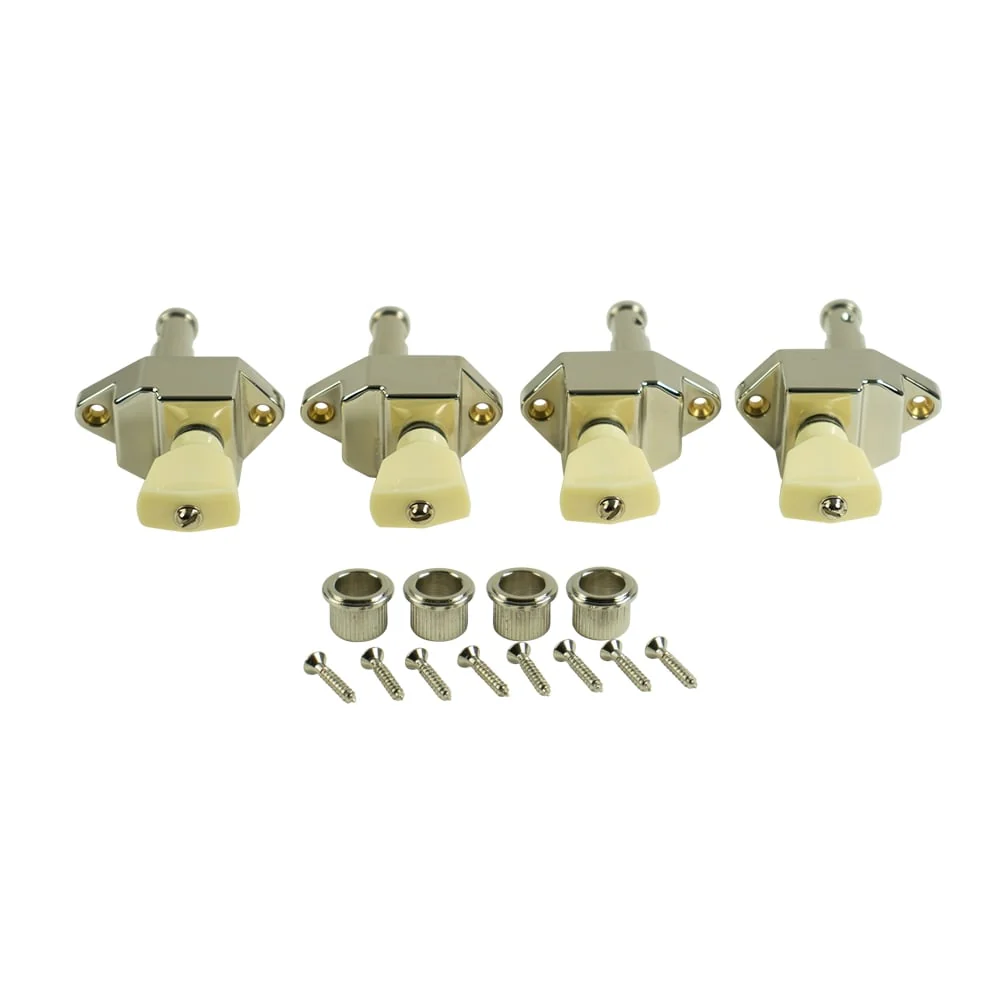

After more than 40 years, Kluson has now reissued the Firebird/Banjo tuners in all their original glory. Kluson stayed true to the design in virtually every aspect using planetary gears with the 12:1 ratio (wind rate = to 14.6:1 ratio), the exact mounting screw pattern, housing size and appearance with the 5/16 inch string post. These tuners have a larger string post and as a result, they do require the original larger peg hole which is very similar in size to what is used for modern die-cast tuners. The “T"� and“B" on the bottom plates depict treble or bass side and are only visible when they are not attached to the headstock. They are available in gold, nickel and chrome plating and come with push-fit ferrules and mounting screws.
Important Dimensions:
Button Shaft dims = 5/32 in. (3.97mm) w/ opposing flat sides
Button Screw = 4-48 N.F. tap
String Post Diameter = 5/16 in.
Gear Ratio = 12:1 Planetary
Wind Ratio equivalent = 14.6:1
Mounting Screws = #4 X 1/2 in. Phillips raised head Countersink screw
Bushing Dims = 13/32 in. (10mm) O.D. X 5/16 in I.D.
Original: $240.30
-65%$240.30
$84.11More Images
Firebird Bass / Banjo 2 + 2 Set Of Tuners with Plastic Keystone Buttons
After more than 40 years, Kluson has now reissued the Firebird/Banjo tuners in all their original glory. Kluson stayed true to the design in virtually every aspect using planetary gears with the 12:1 ratio (wind rate = to 14.6:1 ratio), the exact mounting screw pattern, housing size and appearance with the 5/16 inch string post. These tuners have a larger string post and as a result, they do require the original larger peg hole which is very similar in size to what is used for modern die-cast tuners. The “T"� and“B" on the bottom plates depict treble or bass side and are only visible when they are not attached to the headstock. They are available in gold, nickel and chrome plating and come with push-fit ferrules and mounting screws.
Important Dimensions:
Button Shaft dims = 5/32 in. (3.97mm) w/ opposing flat sides
Button Screw = 4-48 N.F. tap
String Post Diameter = 5/16 in.
Gear Ratio = 12:1 Planetary
Wind Ratio equivalent = 14.6:1
Mounting Screws = #4 X 1/2 in. Phillips raised head Countersink screw
Bushing Dims = 13/32 in. (10mm) O.D. X 5/16 in I.D.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
After more than 40 years, Kluson has now reissued the Firebird/Banjo tuners in all their original glory. Kluson stayed true to the design in virtually every aspect using planetary gears with the 12:1 ratio (wind rate = to 14.6:1 ratio), the exact mounting screw pattern, housing size and appearance with the 5/16 inch string post. These tuners have a larger string post and as a result, they do require the original larger peg hole which is very similar in size to what is used for modern die-cast tuners. The “T"� and“B" on the bottom plates depict treble or bass side and are only visible when they are not attached to the headstock. They are available in gold, nickel and chrome plating and come with push-fit ferrules and mounting screws.
Important Dimensions:
Button Shaft dims = 5/32 in. (3.97mm) w/ opposing flat sides
Button Screw = 4-48 N.F. tap
String Post Diameter = 5/16 in.
Gear Ratio = 12:1 Planetary
Wind Ratio equivalent = 14.6:1
Mounting Screws = #4 X 1/2 in. Phillips raised head Countersink screw
Bushing Dims = 13/32 in. (10mm) O.D. X 5/16 in I.D.
