Les Paul Wiring Kit, Short Pots for Historic Custom Shop Guitars

Armstrong Music's upgraded wiring kit for Gibson Les Paul. This kit is specifically aimed for Gibson Les Paul Historic Custom Shop models that typically require the shorter length pots that measure 9mm. If you have a standard production Les Paul model (not from the Custom Shop) then you are most likely going to require the long shaft Les Paul wiring kit. Genuine CTS potentiometers with 9mm threaded shaft length, Switchcraft switch, we even throw in that hard to find vintage dress nut for the switch. Select between nickel or gold-plated finishes for the switch, switch nut and jack socket to suit the rest of the hardware on your instrument.

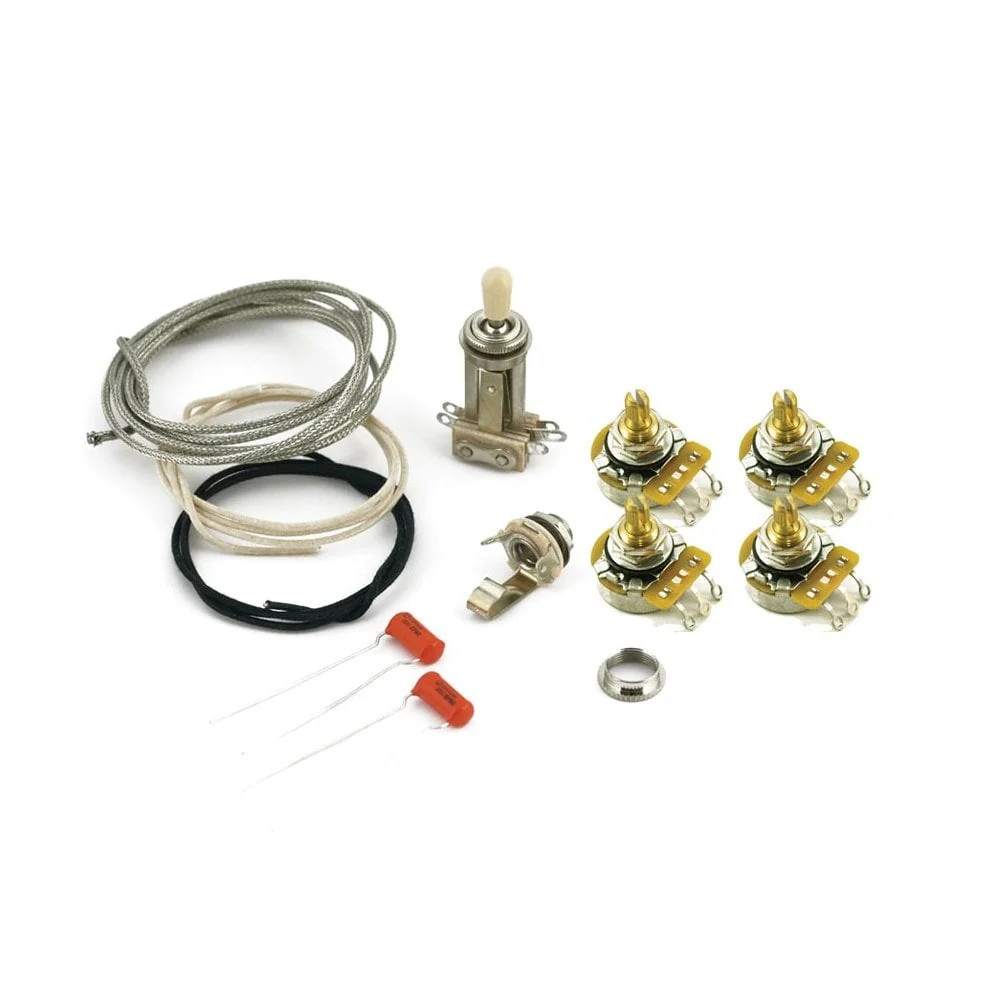

Kit includes:

• 1 x Genuine Switchcraft ‚¼ in. input jack WDE12N-1
  (gold kit comes with WDE12G-1)
• 4 x Genuine CTS 500K (550K) audio taper (log) pots AM-CTS-A-550K
• 2 x .022 Sprague Orange Drop capacitors .022CAP-OD
• 1 x Switchcraft LP long frame toggle switch WDE7SWN-1
  (gold kit comes with WDE7SWG-1)
• 1 x Vintage toggle nut AM-1821N
  (gold kit comes with AM-1820G)
• 4 ft. Shielded guitar circuit wire WIREG
• 2 ft. Black unshielded guitar circuit wire WIREBKF
• 1 ft. White unshielded guitar circuit wire WIREWTF
• Wiring diagram
