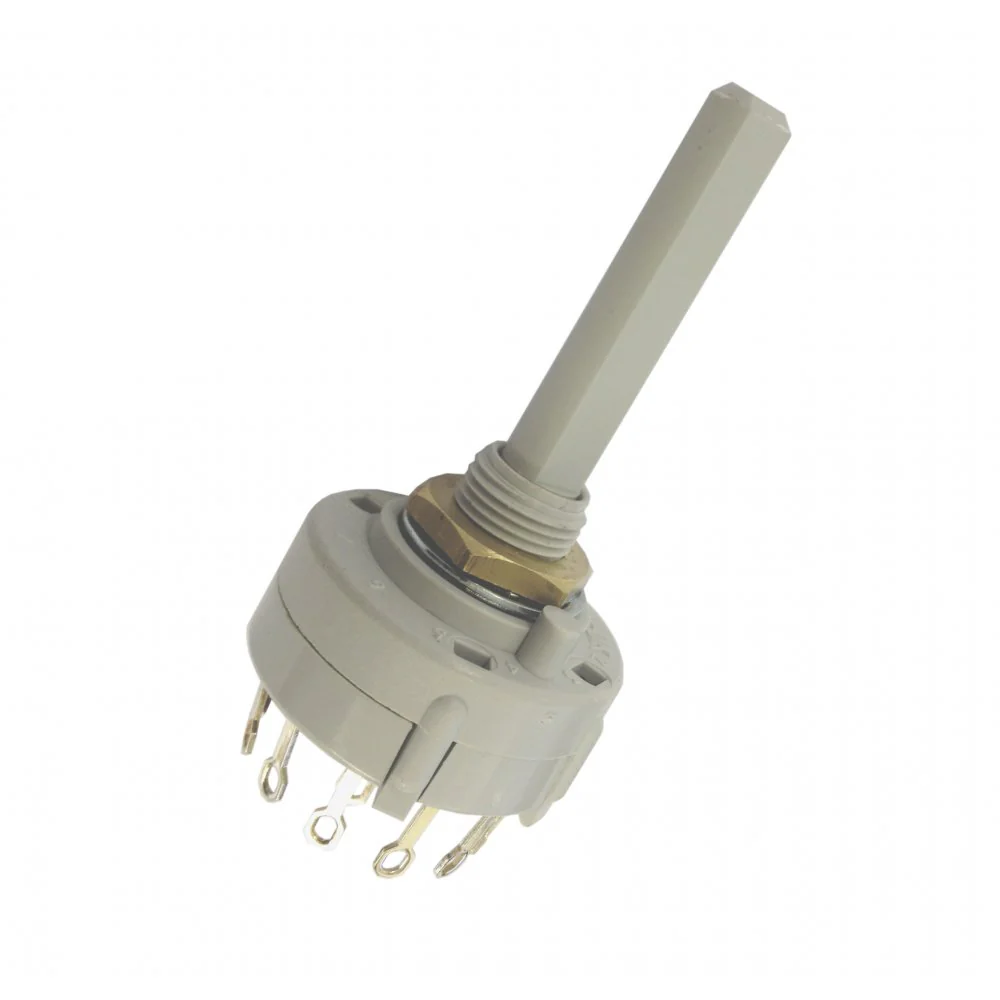

Rotary Switch

Rotary selector switch. Comes with a lock washer that can be used to turn it into a 2 way switch all the way up to a 12 way, or anything in between.

Nut and washer included. Has a plastic shaft that can be cut down to size. Our push fit plastic knobs will not fit on to the plastic shaft, so we recommend using any one of the metal knobs that attach with a grub screw.

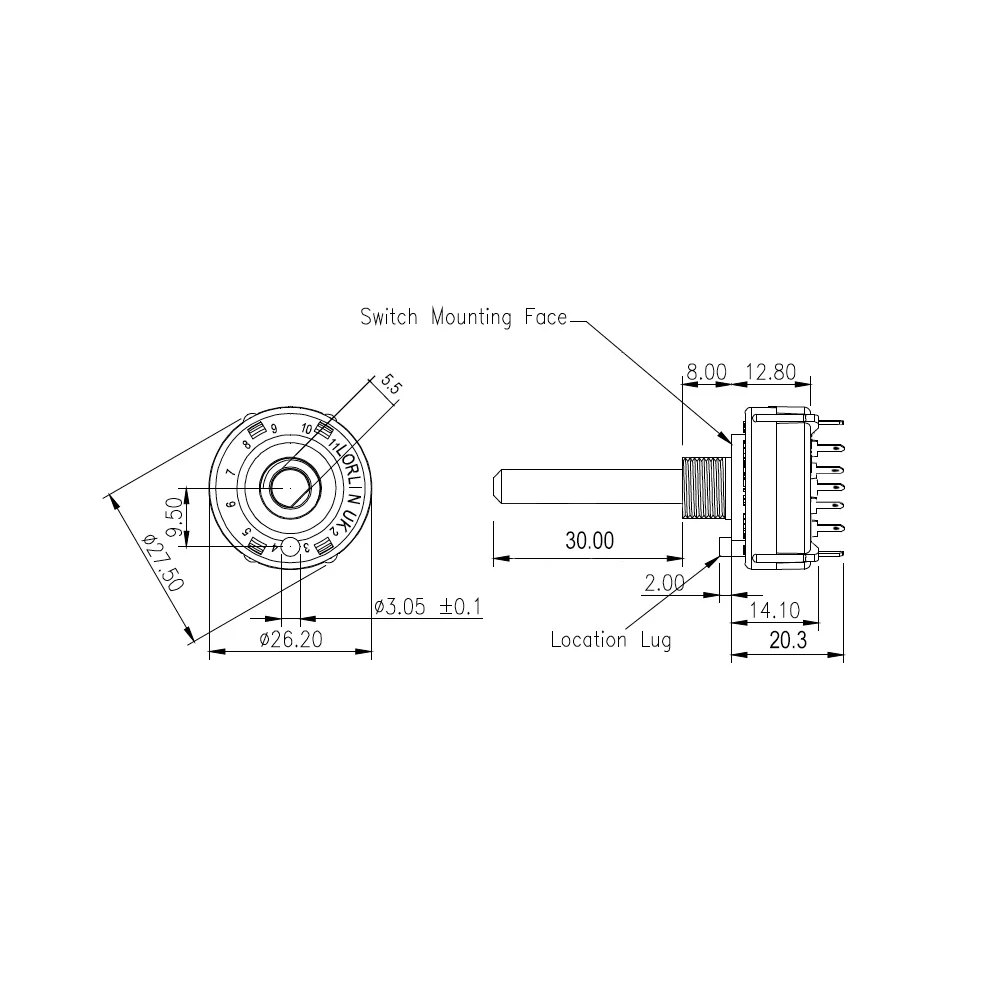

Important Measurements -

Length of plastic shaft (can be trimmed down) - 29mm
Diameter of plastic shaft - 6mm
Diameter of threaded section - 9mm
Length of threaded section - 7mm
Diameter of the body part of switch - 26mm
