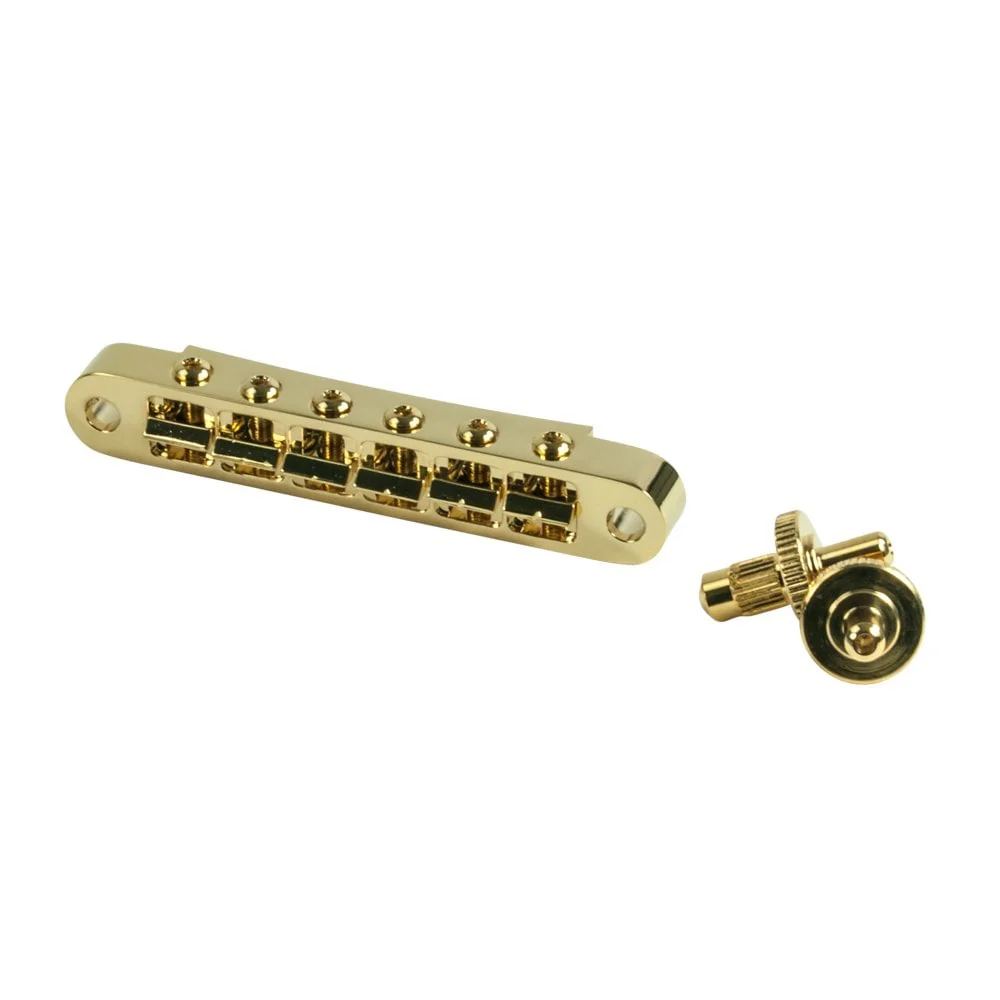

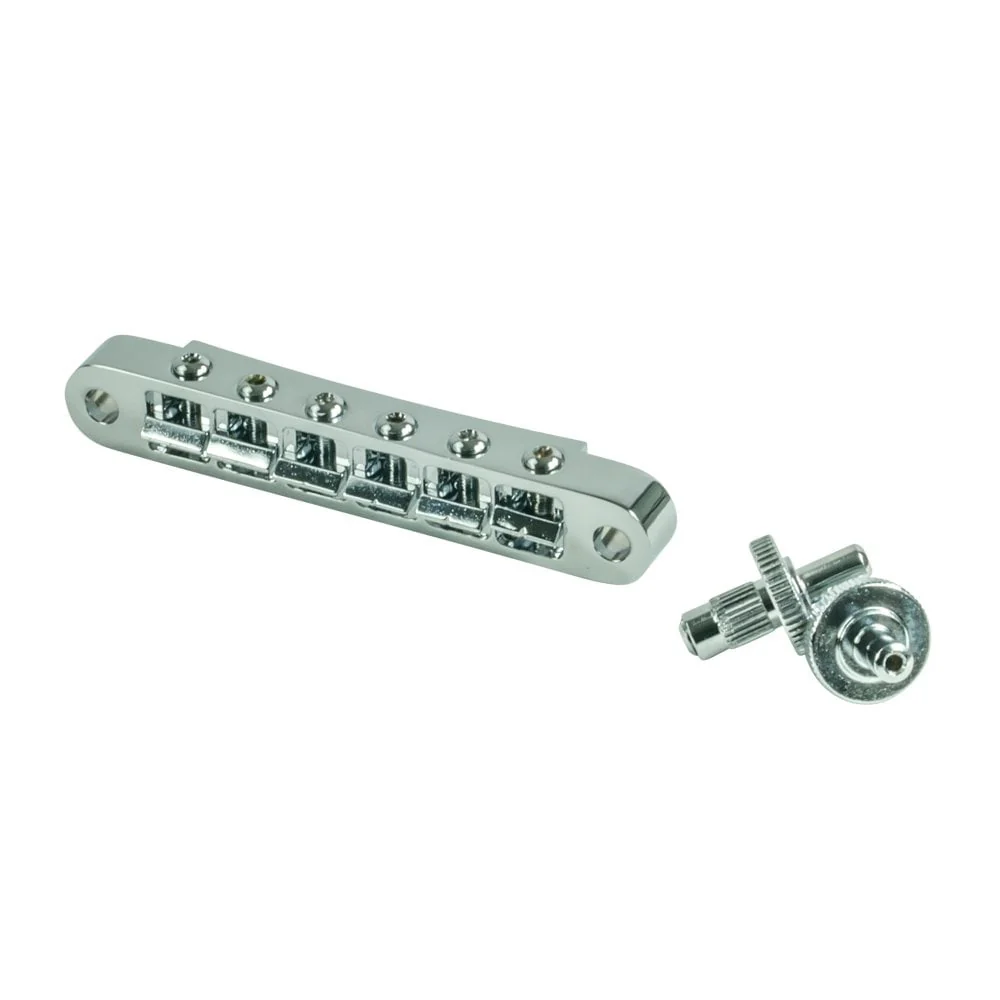

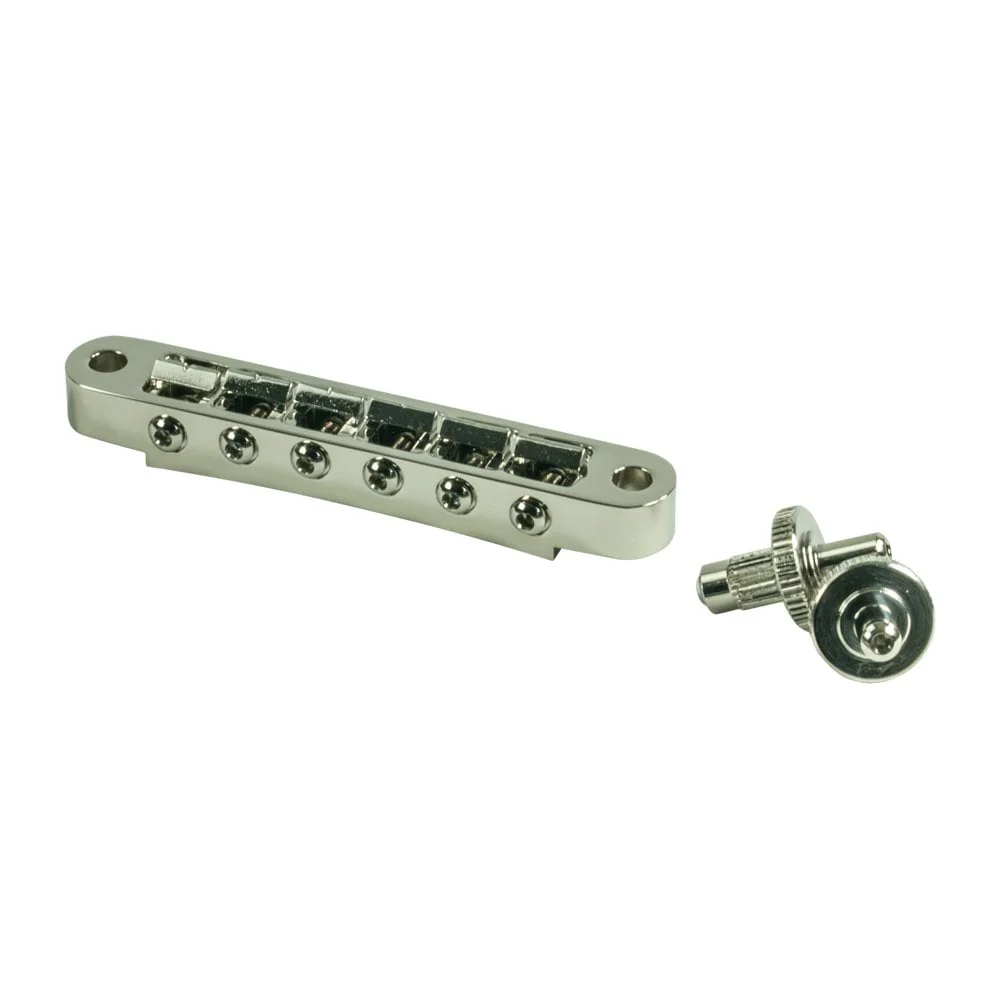

Standard Nashville Tune-o-matic Bridge Aluminium with string slots (U.S. Made)
Kluson is back in the hardware game with this new USA made Nashville-style Tune-O-Matic bridge, this version is made specifically from light-weight aluminium. This is a superb OEM bridge for builders or the DIY repairman offering a longer adjustment area and more mass than the original ABR-1 bridge. It matches Gibson specifications and is a drop-in 'no-modification-required' replacement part for any Gibson that is already fitted with the standard Nashville (non-ABR-1) unit. We dare you to compare, you'll never go back!
Important Specs and Dimensions:
Thread = M5 - 0.8 Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.89 in. (73.5mm)
Saddle Notch = Centre Notched Saddles
Saddle Material = Brass
Bridge Material = Aluminium
Post/Thumbwheel Material = Brass stud, zinc insert
Radius = 12 inch
Post Top Width = .15 Inches / 4mm
Bridge Stud Diameter = 4 mm with smooth top
Diameter of stud threaded section = 4.77mm
Saddle Spacing = 10.4 mm
Original: $291.32
-65%$291.32
$101.96More Images
Standard Nashville Tune-o-matic Bridge Aluminium with string slots (U.S. Made)
Kluson is back in the hardware game with this new USA made Nashville-style Tune-O-Matic bridge, this version is made specifically from light-weight aluminium. This is a superb OEM bridge for builders or the DIY repairman offering a longer adjustment area and more mass than the original ABR-1 bridge. It matches Gibson specifications and is a drop-in 'no-modification-required' replacement part for any Gibson that is already fitted with the standard Nashville (non-ABR-1) unit. We dare you to compare, you'll never go back!
Important Specs and Dimensions:
Thread = M5 - 0.8 Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.89 in. (73.5mm)
Saddle Notch = Centre Notched Saddles
Saddle Material = Brass
Bridge Material = Aluminium
Post/Thumbwheel Material = Brass stud, zinc insert
Radius = 12 inch
Post Top Width = .15 Inches / 4mm
Bridge Stud Diameter = 4 mm with smooth top
Diameter of stud threaded section = 4.77mm
Saddle Spacing = 10.4 mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Kluson is back in the hardware game with this new USA made Nashville-style Tune-O-Matic bridge, this version is made specifically from light-weight aluminium. This is a superb OEM bridge for builders or the DIY repairman offering a longer adjustment area and more mass than the original ABR-1 bridge. It matches Gibson specifications and is a drop-in 'no-modification-required' replacement part for any Gibson that is already fitted with the standard Nashville (non-ABR-1) unit. We dare you to compare, you'll never go back!
Important Specs and Dimensions:
Thread = M5 - 0.8 Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.89 in. (73.5mm)
Saddle Notch = Centre Notched Saddles
Saddle Material = Brass
Bridge Material = Aluminium
Post/Thumbwheel Material = Brass stud, zinc insert
Radius = 12 inch
Post Top Width = .15 Inches / 4mm
Bridge Stud Diameter = 4 mm with smooth top
Diameter of stud threaded section = 4.77mm
Saddle Spacing = 10.4 mm
