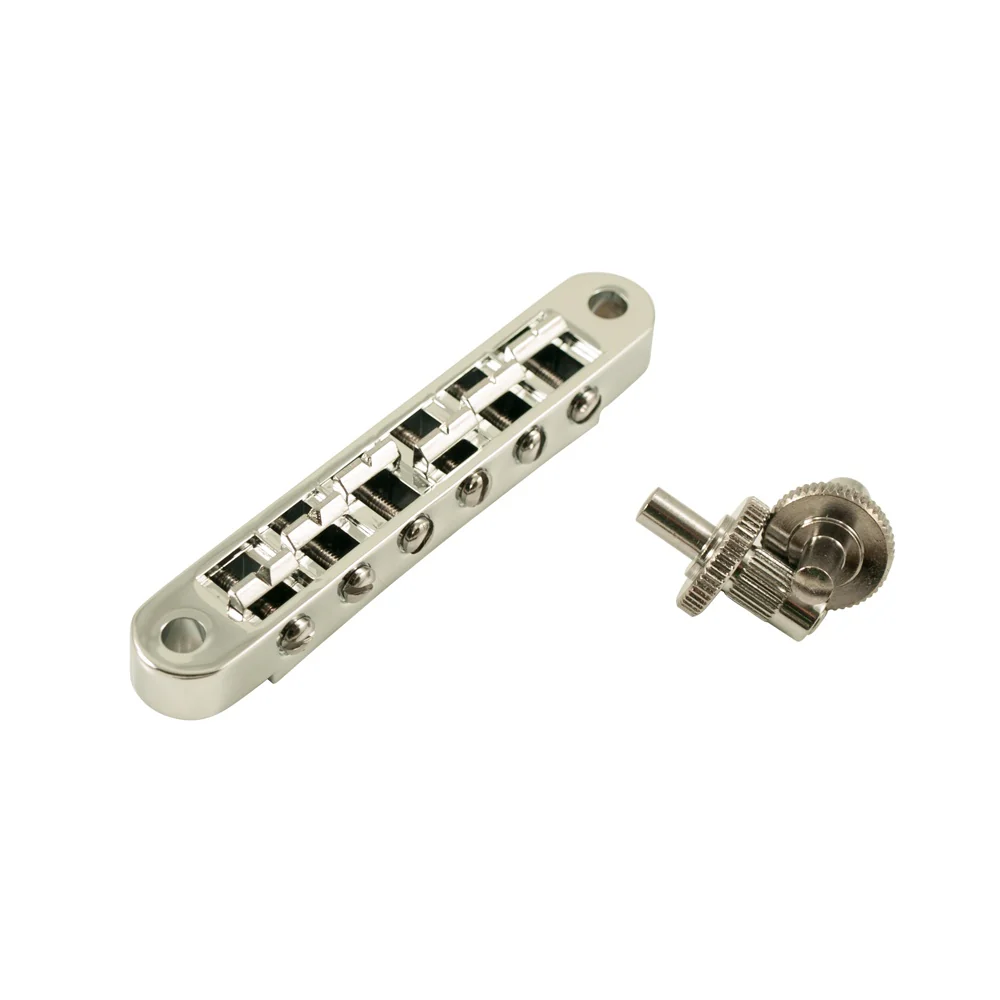

Standard Nashville Tune-o-matic Bridge Zinc with string slots (U.S. Made)
Armstrong Music is back in the hardware game with this new USA made Nashville-style Tune-O-Matic bridge. This is a superb OEM bridge for builders or the DIY repairman offering a longer adjustment area and more mass than the original ABR-1 bridge. It matches Gibson specifications and is a drop-in 'no-modification-required' replacement part for any Gibson that is already fitted with the standard Nashville (non-ABR-1) unit. We dare you to compare, you'll never go back!
Important Specs and Dimensions:
Thread = M5 - 0.8 Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.89 in. (73.5mm)
Saddle Notch = Centre Notched Saddles
Saddle Material = Zmac
Bridge Material = Zmac
Post/Thumbwheel Material = Brass
Radius = 12 inch
Bridge Stud Diameter = .195 inches / 4.95mm
Diameter of stud threaded section = 4.77mm
Saddle Spacing = 10.1 mm (50.5mm E to E string string spacing)
