Tele Bridge Top Mount With Barrel Saddles
This is a six barrel saddle Tele replacement bridge that allows top-loading the strings instead of stringing through the body. Utilizes 3 mounting screws. Comes with mounting screws and 1.5mm allen wrench for adjustments. This bridge has an overall string spacing of 55mm and is NOT a direct replacement for a Fender American Standard modern Tele bridge due to location of the string through holes being behind the mounting screws instead of in front of them UNLESS you opt to use it as a top-loaded bridge and string through the back of the plate. The three mounting screw positions and pickup location are the same as the Fender American Standard Series Telecaster.
Brass saddles with a steel baseplate.

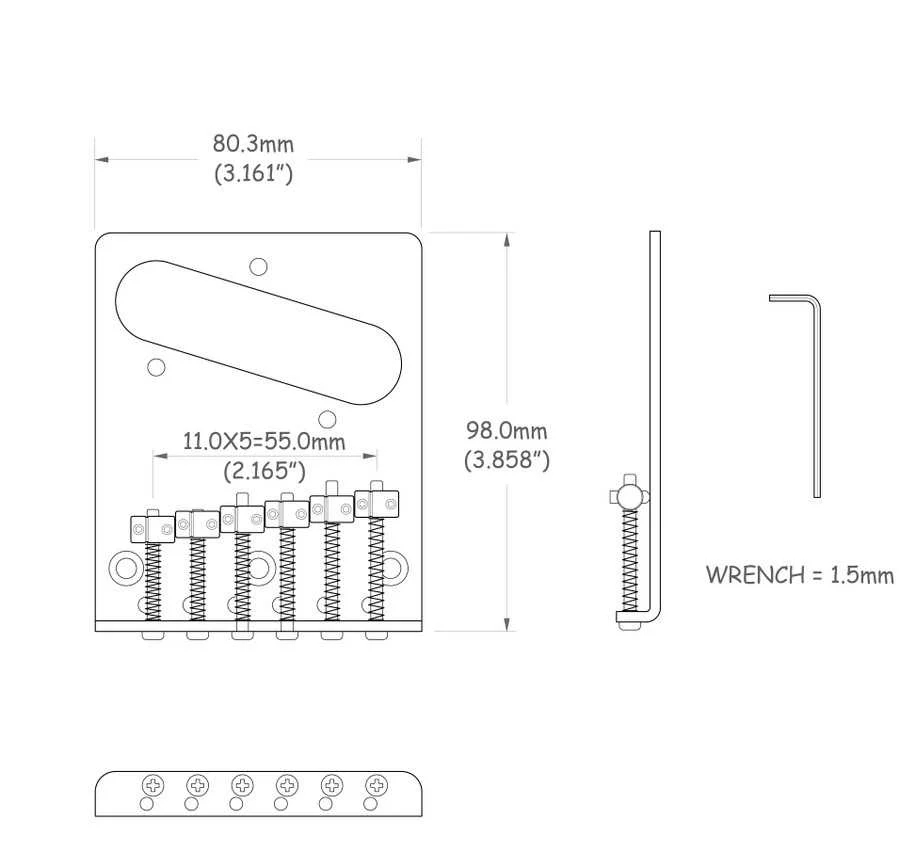

Important measurements
E to E saddle spacing - 55mm
Held on with 3 screw holes - 32mm centre to centre between two adacent fixing holes.
Overall plate size - 80mm x 97mm
More Images



Tele Bridge Top Mount With Barrel Saddles
This is a six barrel saddle Tele replacement bridge that allows top-loading the strings instead of stringing through the body. Utilizes 3 mounting screws. Comes with mounting screws and 1.5mm allen wrench for adjustments. This bridge has an overall string spacing of 55mm and is NOT a direct replacement for a Fender American Standard modern Tele bridge due to location of the string through holes being behind the mounting screws instead of in front of them UNLESS you opt to use it as a top-loaded bridge and string through the back of the plate. The three mounting screw positions and pickup location are the same as the Fender American Standard Series Telecaster.
Brass saddles with a steel baseplate.
Important measurements
E to E saddle spacing - 55mm
Held on with 3 screw holes - 32mm centre to centre between two adacent fixing holes.
Overall plate size - 80mm x 97mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a six barrel saddle Tele replacement bridge that allows top-loading the strings instead of stringing through the body. Utilizes 3 mounting screws. Comes with mounting screws and 1.5mm allen wrench for adjustments. This bridge has an overall string spacing of 55mm and is NOT a direct replacement for a Fender American Standard modern Tele bridge due to location of the string through holes being behind the mounting screws instead of in front of them UNLESS you opt to use it as a top-loaded bridge and string through the back of the plate. The three mounting screw positions and pickup location are the same as the Fender American Standard Series Telecaster.
Brass saddles with a steel baseplate.
Important measurements
E to E saddle spacing - 55mm
Held on with 3 screw holes - 32mm centre to centre between two adacent fixing holes.
Overall plate size - 80mm x 97mm
