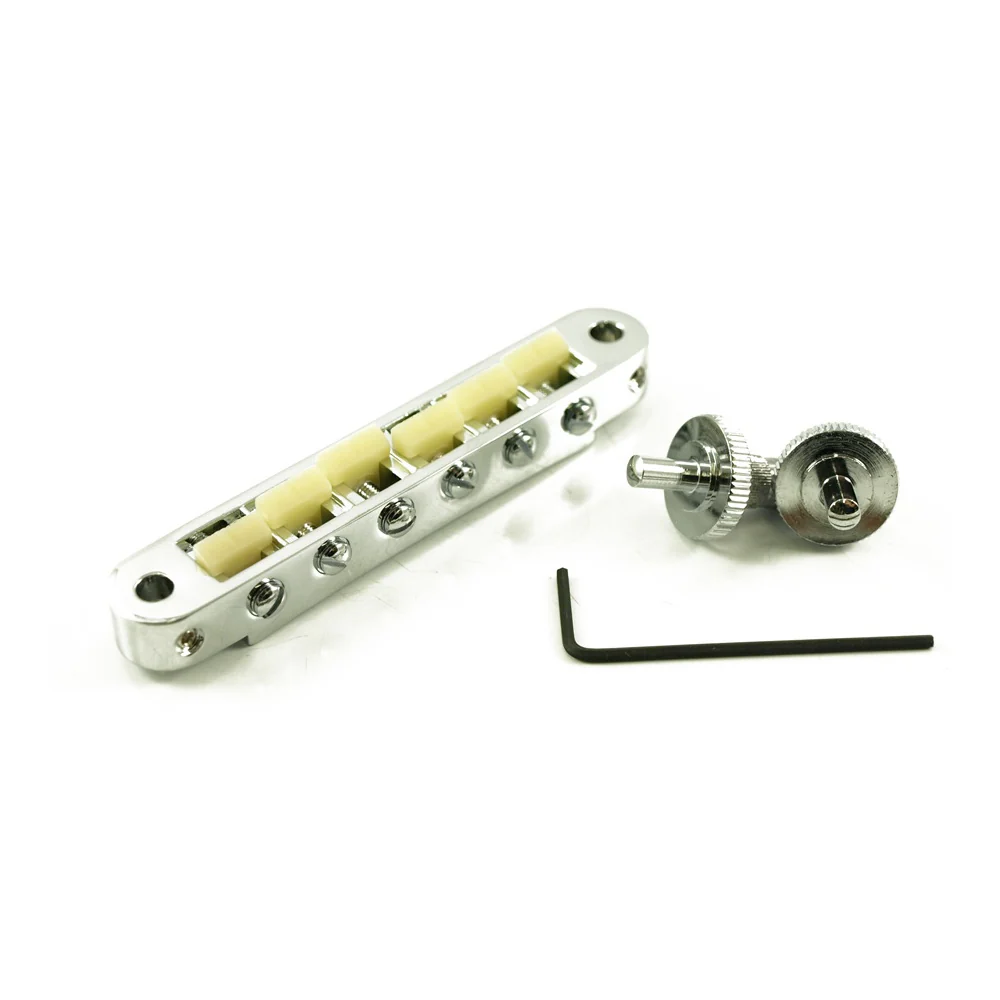

Tune-O-Matic Superbridge
The Superbridge is a TonePros Tune-O-Matic loaded with G Formula saddles.
The TonePros TP6 is a locking version of the Nashville type standard small post and threaded insert as found standard on current USA Gibson Les Paul GT and Gibson SG GT models. (Same format as LP Standard & LP Custom). This bridge has "TonePros Formula" notched saddles using a special proprietary formula based on the original vintage Nylon 66 saddle material found in guitars of the late 50¢ and early 60¢. Direct retrofit for most USA guitars without modification.
This model fits your Gibson Les Paul, SG, ES-335 as well as most other USA made guitars.
Important Dimensions:
TonePros Standard (US/Imperial Thread) Tune-O-Matic Bridge with G Formula saddles
Thread = 5mm Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.93 Inches/ 74.5mm
Saddle Notch = Pre-Notched Saddles
Bridge Material = Zmac
Post/Thumbwheel Material = Brass
Radius = 12 inch
String Spread = Approx. 10.4mm
Post Top Width = .15 Inches/ 4mm
Bridge Stud Diameter = 4 mm w/ Smooth Top
Bridge Center To Center Spacing = 2.95 inches
More Images
Tune-O-Matic Superbridge
The Superbridge is a TonePros Tune-O-Matic loaded with G Formula saddles.
The TonePros TP6 is a locking version of the Nashville type standard small post and threaded insert as found standard on current USA Gibson Les Paul GT and Gibson SG GT models. (Same format as LP Standard & LP Custom). This bridge has "TonePros Formula" notched saddles using a special proprietary formula based on the original vintage Nylon 66 saddle material found in guitars of the late 50¢ and early 60¢. Direct retrofit for most USA guitars without modification.
This model fits your Gibson Les Paul, SG, ES-335 as well as most other USA made guitars.
Important Dimensions:
TonePros Standard (US/Imperial Thread) Tune-O-Matic Bridge with G Formula saddles
Thread = 5mm Metric (as used by Gibson on Nashville Models)
Post to Post Spacing = 2.93 Inches/ 74.5mm
Saddle Notch = Pre-Notched Saddles
Bridge Material = Zmac
Post/Thumbwheel Material = Brass
Radius = 12 inch
String Spread = Approx. 10.4mm
Post Top Width = .15 Inches/ 4mm
Bridge Stud Diameter = 4 mm w/ Smooth Top
Bridge Center To Center Spacing = 2.95 inches
