Tele B16 Model

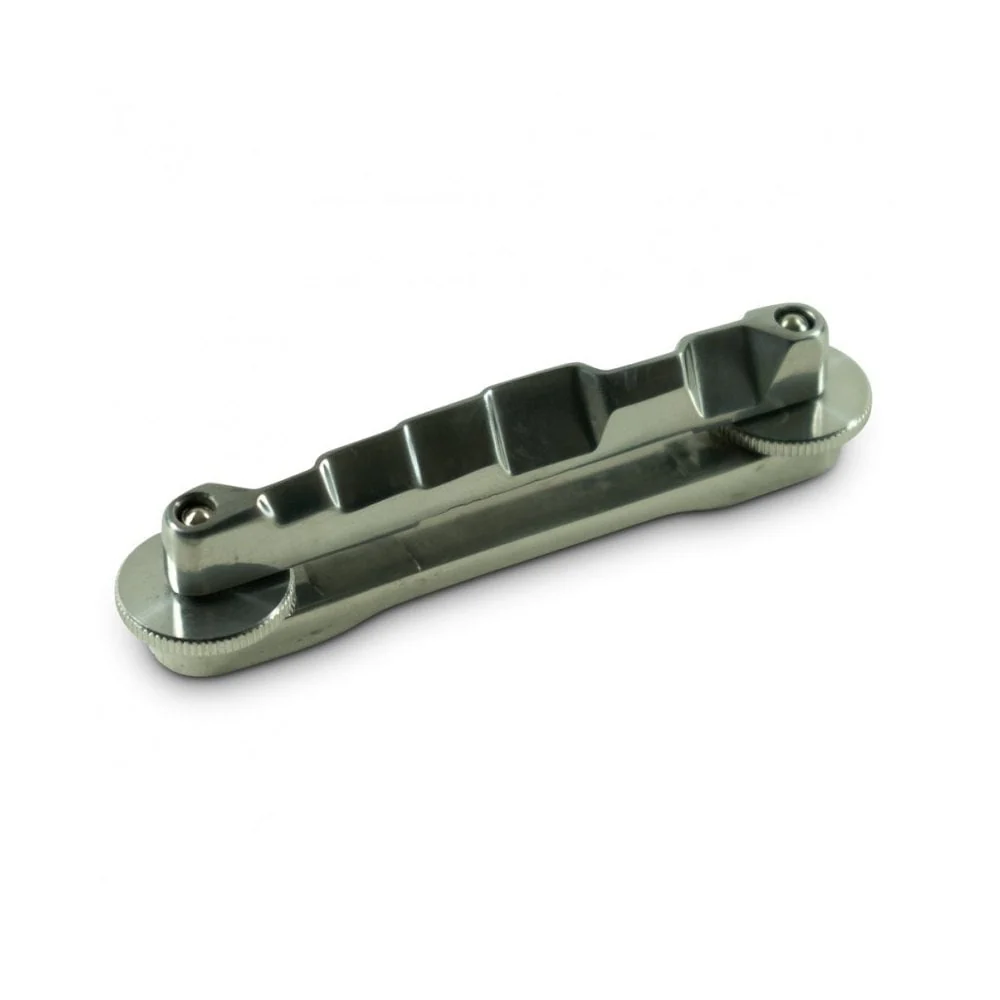

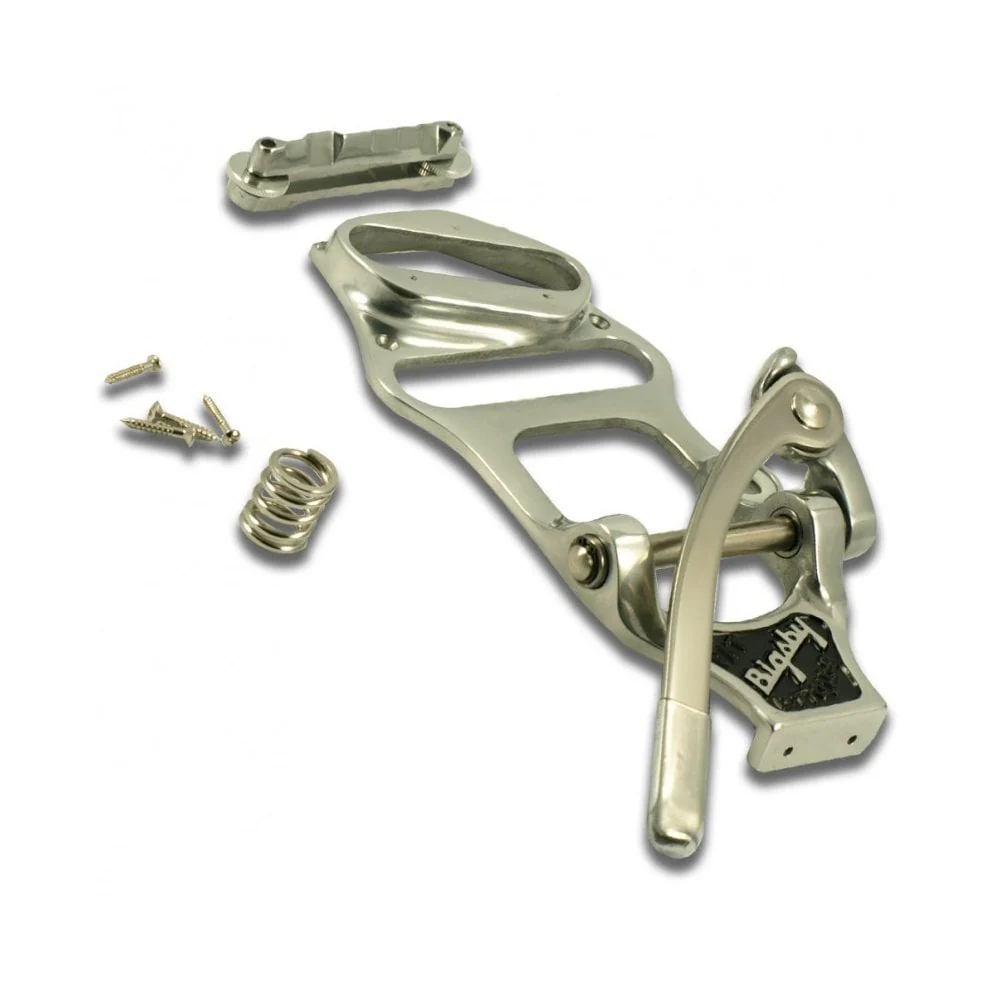

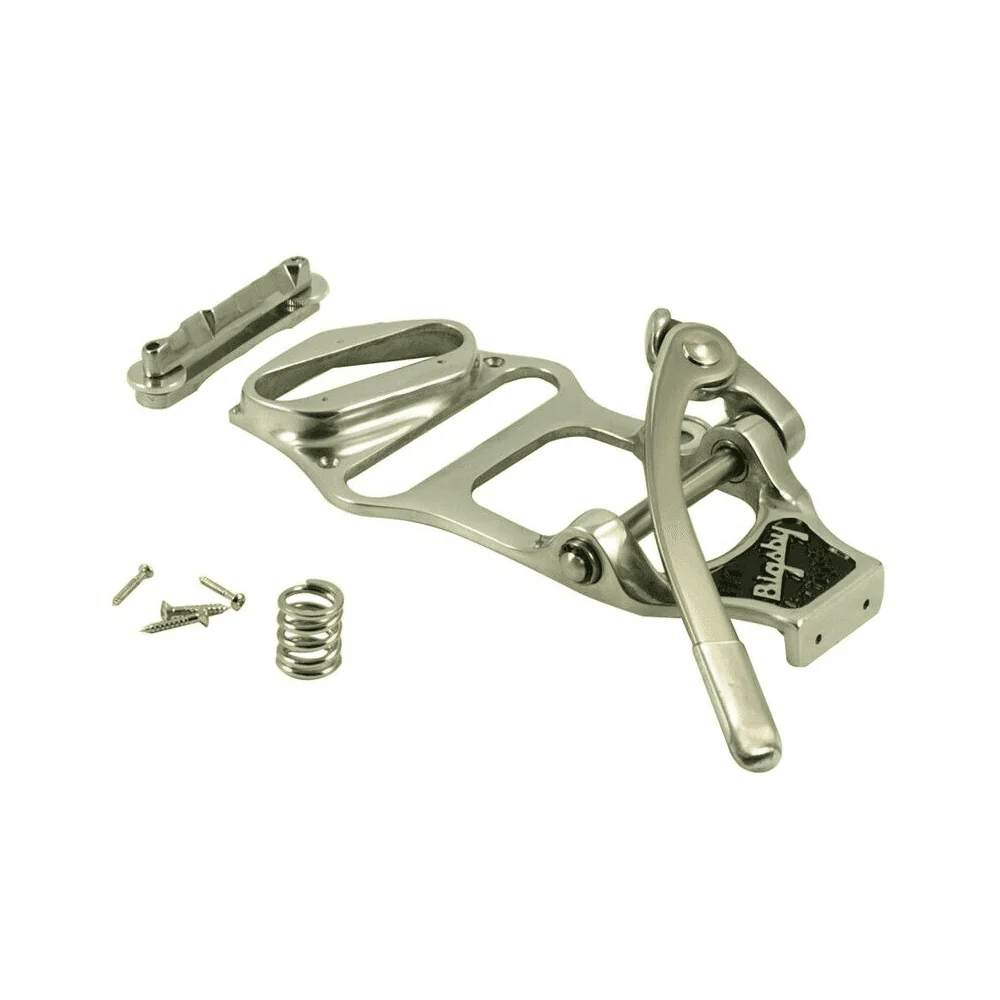

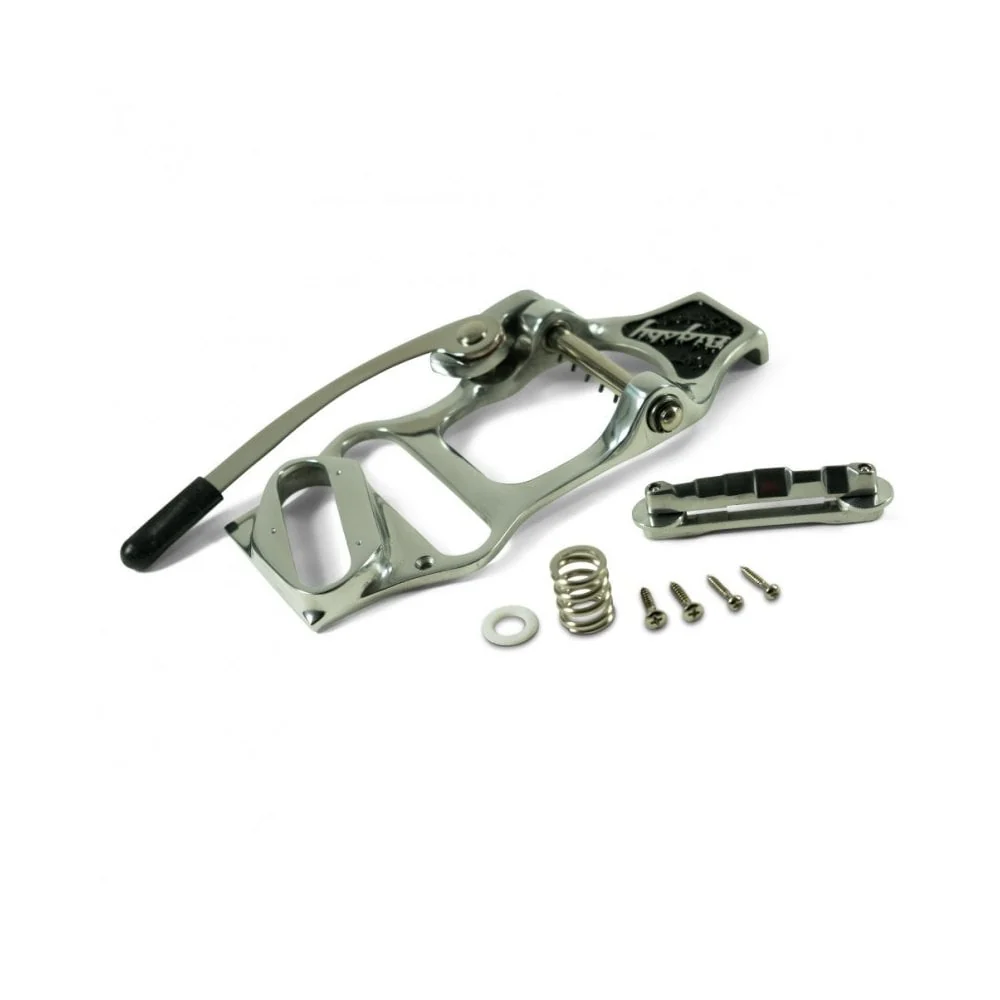

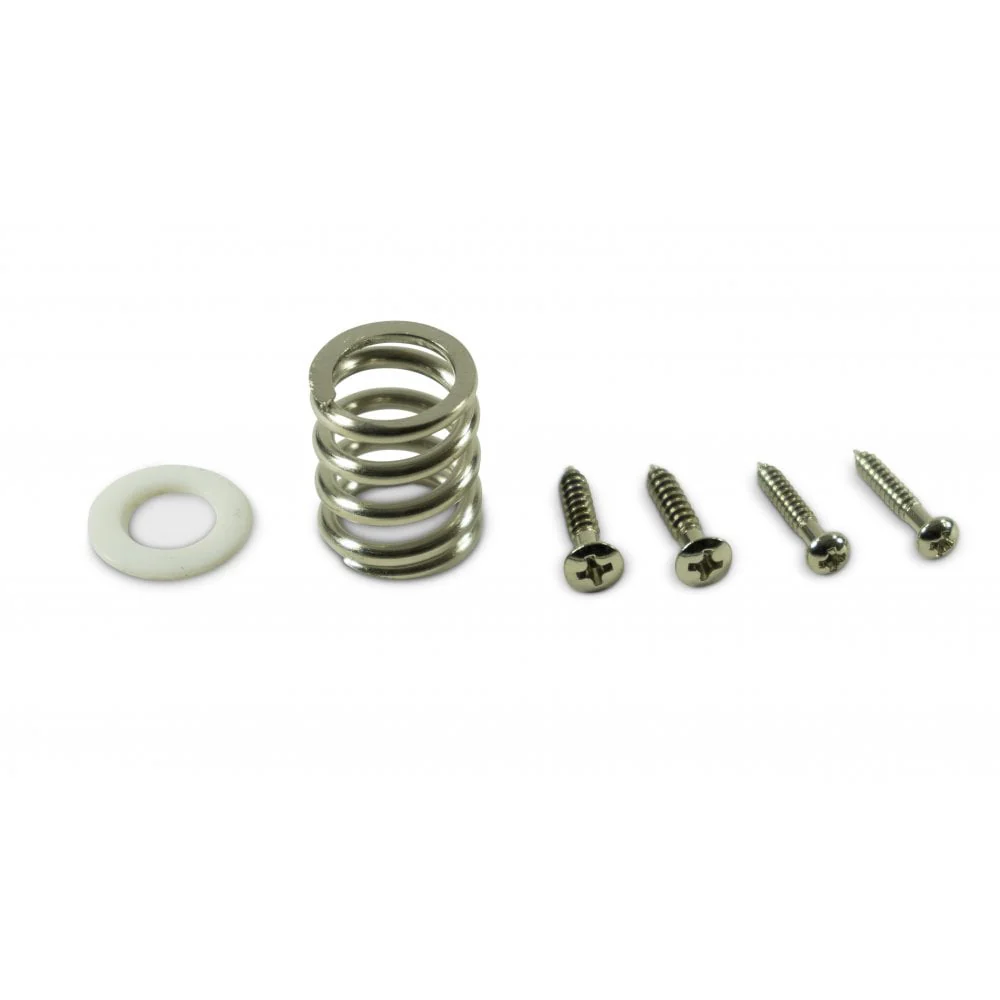

Bigsby USA Tele model. The frame not only has the vibrato system but also holds the Tele bridge pick-up, all in the same unit! Due to the height of it, you will have to shim the neck pocket for it to work properly. Metal compensated bridge included, along with arm spring and mounting screws.

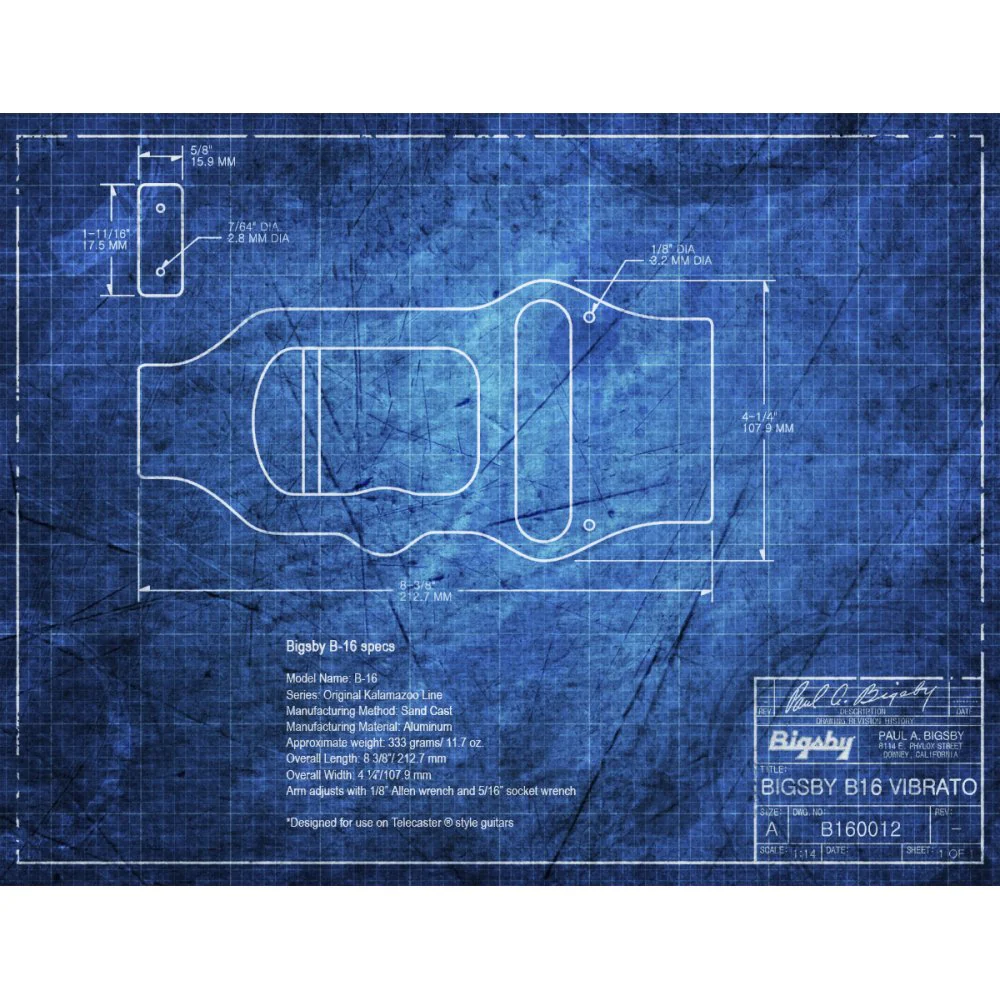

Please see the additional product image to view a detailed measurement and information sheet for this Bigsby unit.

Series: Original Kalamazoo Line

Manufacturing Method: Sand Cast

Manufacturing Material: Aluminum

Approximate weight: 333 grams/ 11.7 oz.

Overall Length: 8 3/8 in. / 212.7mm

Overall Width: 4 1/4 in. / 107.9mm

Arm adjusts with 1/8 in. Allen wrench and 5/16 in. socket wrench
